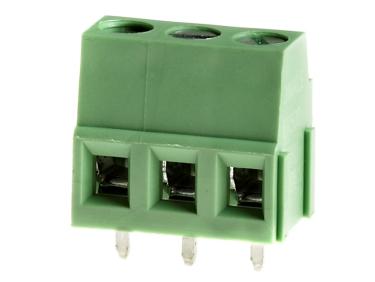

PCB Mount Screw Terminal 5.00mm Pitch EK500V
These Dinkle products conform to IEC60998 and UL1059 international standards and acquired the approvals of UL and VDE.These are made from the standard basic sizes as 2 pole and 3 poles. With these two sizes, they can be dove-tailed together for any need pole number.SCROLL DOWN & SELECT PART NUMBER
Click on image to enlarge
Purchase items here
| QTY* | PART No. | DESCRIPTION |
|---|---|---|
Specification
- PCB Mount Screw Terminal
- 5.00mm Pitch
- Multiple Variations
- Rated Voltage-UL: 300V
- Rated Voltage-IEC: 250V
- Rated Current-UL:20A
- Rated Current-IEC: 24A
- Wire Range: 2.5mm²
- Solid Wire(AWG): 24-12
- Stranded Wire(AWG): 24-12
- Rated Surge Voltage (UL/IEC/Max.): 1.6/2/3KV
- Torque: 4.4
- Screw: M2.5
- Wire Strip Length: 6-7mm
