AP/W/SWITCH
Askari Panel Sounder
A compact sounder, designed to fit through the fascias of control panels or equipment housings. The single nut fixing ensures simple installation and maximum audibility. Small-size dedicated panel fixing 9 V dc to 28 V dc IP65 protection. Sounders are easily accommodated and simple to install into control equipment enclosures. A smoothed DC power supply is required for these units. The high IP rating of this electronic sounder makes it suitable for most process and industrial environments.
Features & Benefits
Small size
Dedicated panel fixing
9 V dc to 28 V dc
IP65 protection
Easily accommodated
Easy to fit into control equipment enclosures
Units require a smoothed DC power supply
Can be used in internal and external equipment
Volume control (0 dB to -20 dB)
White ABS housing
Automatic synchronisation
Tones compatible with Roshni, Squashni and Flashni sounders
|
Attribute
|
Value |
| Supply Voltage | 9 → 28 V dc |
| IP Rating | IP65 |
| Decibels at 1 Metre | 92dB |
| Current Type | DC |

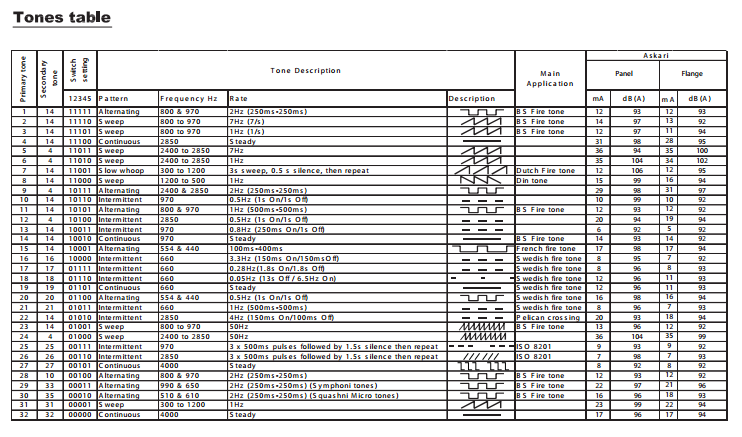

| Number Of Tones | 32 |
| Housing Colour | White |
| Mounting Style | Panel Mount |
| Diameter | 50 mm |
| Minimum Decibel | 92dB |
| Maximum Decibel | 100dB |
| Series | Askari Panel |
| Housing Material | ABS |
| Maximum Temperature | +70°C |
| Minimum Temperature | -25°C |
Purchase items here
| QTY* | PART No. | DESCRIPTION |
|---|---|---|
