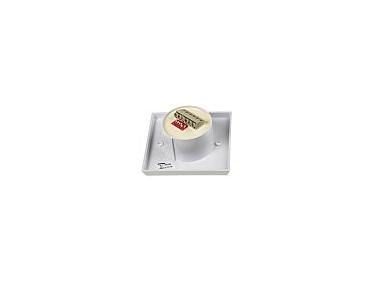

Picture shown is a representation only.
AC/W/SWITCH
Askari Compact Sounder
The Askari Compact is a flush mounted electronic alarm sounder that combines high sound output with a discrete design making it ideal for retail, hotel and residential applications.
32 tones (user selectable)
Automatic synchronisation
Two stage alarm
Discrete design
6 tones certified for fire use
Improved tone clarity, reducing confusion
Alert and alarm function
White ABS housing
Automatic synchronisation
Tones compatible with Roshni, Squashni and Flashni sounders
VdS and CPD
Click on image to enlarge
Purchase items here
| QTY* | PART No. | DESCRIPTION |
|---|---|---|

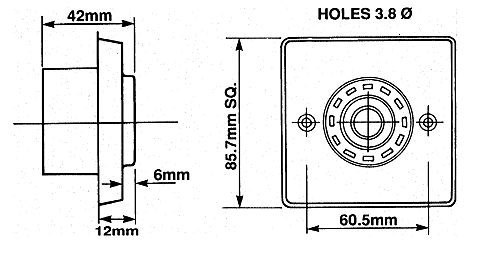

Dimensions
.bmp)
Specification
| Attribute | Value |
| Supply Voltage | 9 → 28 V dc |
| IP Rating | IP65 |
| Decibels at 1 Metre | 97dB |
| Current Type | DC |
| Number Of Tones | 32 |
| Housing Colour | White |
| Mounting Style | Surface Mount |
| Application Type | Hotel & Residential, Retail |
| Minimum Decibel | 88dB |
| Maximum Decibel | 110dB |
| Series | Askari Compact |
| Base Length | 86mm |
| Housing Material | ABS |
| Maximum Temperature | +55°C |
| Minimum Temperature | -10°C |
| Base Width | 86mm |

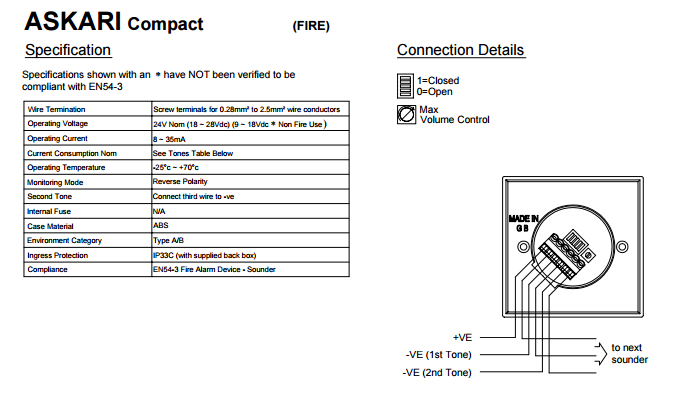

Additional Information
.bmp)

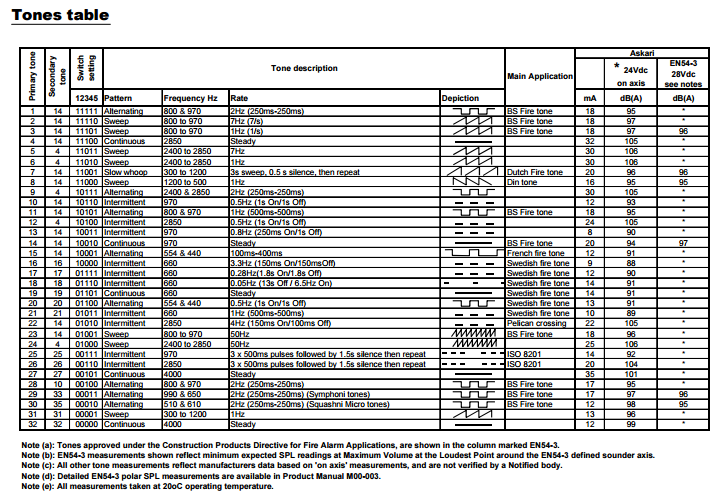

Technical Data
.bmp)
